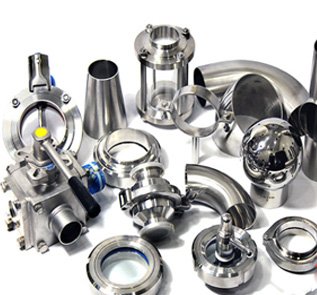

Specification For Stainless Steel Dairy Fittings
| Range | Dairy Bends, Dairy Reducer, TC Clamps, Pipe Holder Clamp,Hose Clamps, Tri Clamp Tee, Dairy Tee, SMS Union, DIN Union, TC Ferrule, SS Spray Balls, Tri Clamp Elbow, Tri Clamp Reducer. |
|---|---|
| Thickness | 1.5mm TO 3mm, 16 SWG, 12 SWG, 14 SWG |
| Outside Diameter | 1/4” N.B. – 8” N.B., 1/4” O.D. – 8” O.D. |
| Sizes | 1/4″ to 6″ |
| Standards | BSP / NPT / DIN / SMS / IDF / TRICLOVER |
| Grade | SS 304, SS 304L, SS 316, SS 316L |
| Finish | Electro Polished, Non Electro Polished, Mechanical Polish, 320 Grit, 400 Grit, 500 Grit, 800 Grit |
Production Range of Dairy Union
| Standards | SMS Standard, DIN Standard, ISO Standard, Other International Specifications |
|---|---|
| Connection Mode | Weld Ends, As per Custom Specification, Threaded |
| Standard Sizes | 1/2” – 4”, DN 10 – DN 100 |
| Application | Beer, Food, Dairy, Beverage, Cosmetics, Pharmacy, and Chemical Industries |
| Surface Finish | Polished, Machined |
| Grades | SS 304, SS 316, SS 316L |
Stainless Steel Dairy Fittings Dimensions
| Nominal Clamp Size | Length C (mm) | Flange Ø (mm) | Rad. B (mm) | Width W (mm) | Mass (kg) |
|---|---|---|---|---|---|
| 1/2" - 3/4" | 60.0 | 25.0 | 63.0 | 17.0 | 0.13 |
| DN 10 / 15 / 20 | 69.0 | 34.0 | 73.0 | 17.0 | 0.17 |
| 1" - 1 1/2" | 85.0 | 50.5 | 78.0 | 17.0 | 0.21 |
| 2" | 99.0 | 64.0 | 82.0 | 17.0 | 0.25 |
| 2 1/2" | 112.0 | 77.5 | 89.0 | 17.0 | 0.35 |
| 3" | 126.0 | 91.0 | 96.0 | 17.0 | 0.42 |
| 3 1/2" | 140.0 | 106.0 | 103.0 | 17.0 | 0.44 |
| 4" | 154.0 | 119.0 | 110.0 | 17.0 | 0.51 |
| 4 1/2" | 165.0 | 130.0 | 115.0 | 17.0 | 0.60 |
| 6" | 216.0 | 167.0 | 134.0 | 25.0 | 0.88 |
Stainless Steel Dairy Fittings For Sale

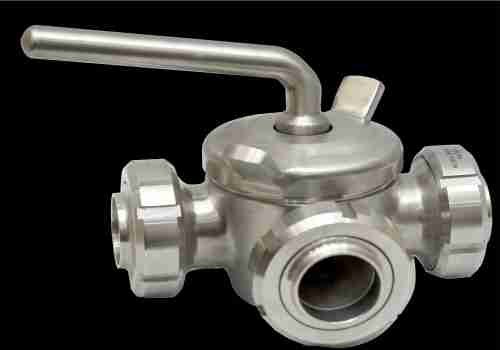

Plug Valve

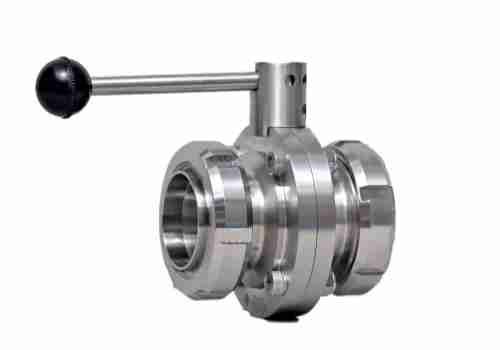

Butterfly Valve

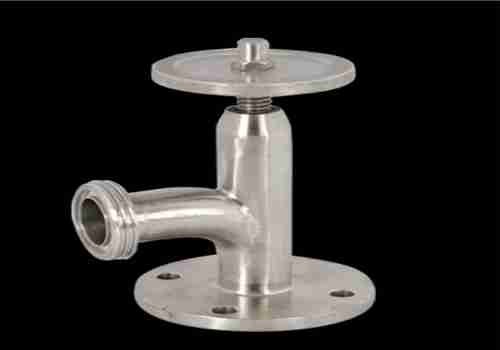

Angular Valve

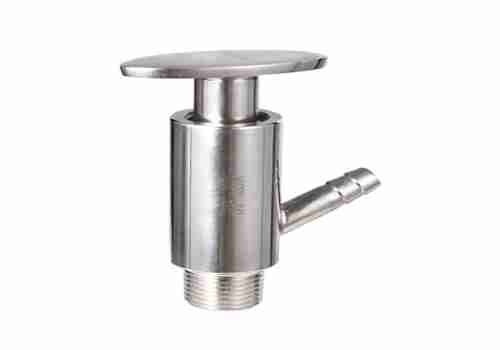

Sampling Valve

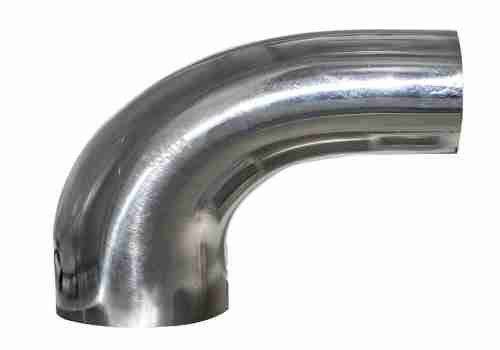

SS BEND 90 °

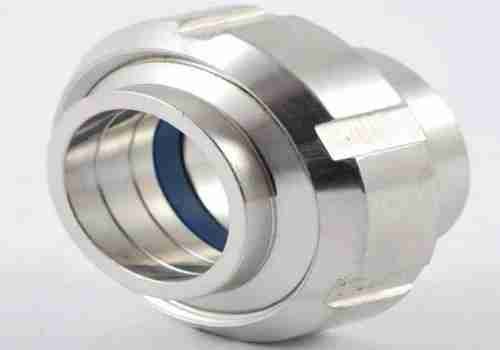

SMS Union

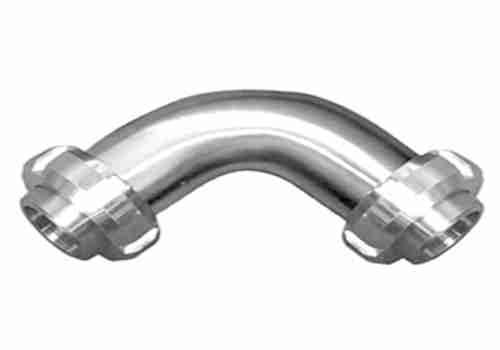

SS Bend with SMS Unions

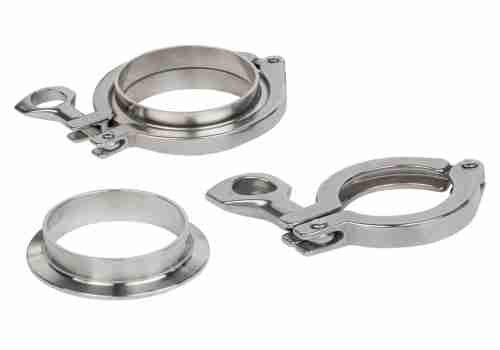

SS Triclover Clamp And Ferrule
