Fordge Fitting

We are a trusted manufacturer and global exporter of forged fittings, which are precision-engineered for high-pressure, high-temperature, and critical applications. Our forged fittings are made from high-quality materials to ensure strength, durability, and resistance to corrosion. We offer a wide variety of fittings designed to meet international standards and cater to a diverse range of industries, including oil & gas, power plants, petrochemicals, and aerospace.

Stainless & Duplex Steel
Range 15 NB up to 100 NB in 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, 150 LBS, 250 LBS
Form Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap
Stainless Steel ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H
Duplex Steel ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

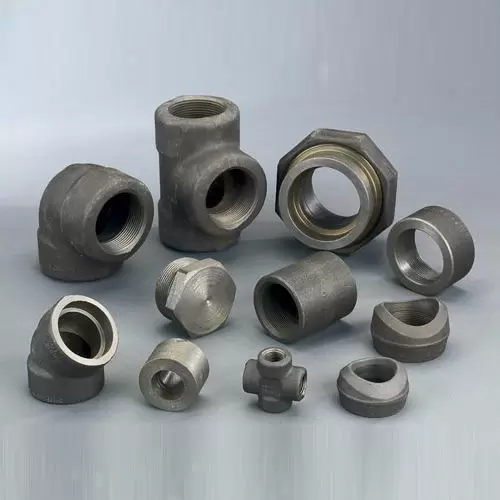

Carbon & Alloy Steel
Range 15 NB up to 100 NB in 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, 150 LBS, 250 LBS
Form Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap
Carbon Steel ASTM / ASME A105, ASTM / ASME A350 LF2
Alloy Steel ASTM / ASME A182 GR F5, F9, F11, F12, F22, F91

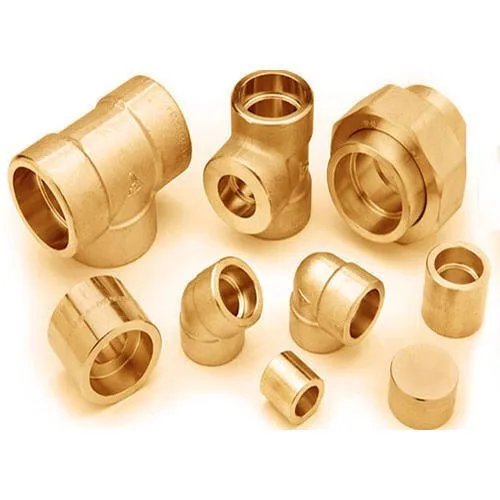

Nickel & Copper Alloy
Range 15 NB up to 100 NB in 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS, 150 LBS, 250 LBS
Form Socket Weld Fittings: Elbow 90 Deg, Cross, Tee, Elbow 45 Deg, Coupling, Half Coupling & End Cap
Nickel Alloy ASTM / ASME SB 564 UNS 2200 (Nickel 200), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276);
ASTM / ASME SB 160 UNS 2201 (Nickel 201);
ASTM / ASME SB 472 UNS 8020 (Alloy 20 / 20 CB 3)
Copper Alloy ASTM / ASME SB 61 UNS NO. C92200; ASTM / ASME SB 62 UNS NO. C83600;
ASTM / ASME SB 151 UNS NO. 70600, 71500, C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30);
ASTM / ASME SB 152 UNS NO. C10100, C10200, C10300, C10800, C12000, C12200

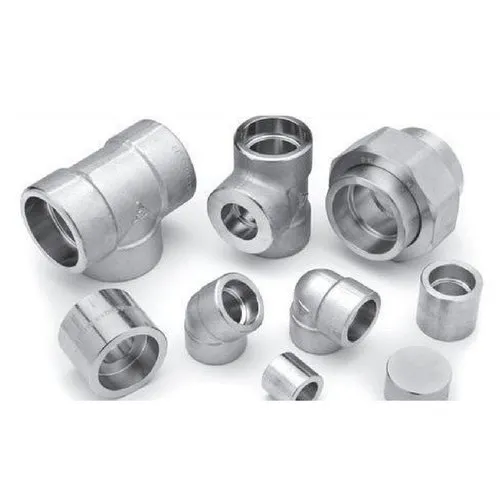

Hastelloy
Grades Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000
Types Hastelloy Union, Hastelloy Coupling, Hastelloy Full Coupling, Hastelloy Cross, Hastelloy Forged Elbow, Hastelloy Hex Nipple, Hastelloy Plug, Hastelloy Bushing, Hastelloy Boss, Hastelloy Insert, Hastelloy Adapter, Hastelloy Socket, Hastelloy Forged Tee, Hastelloy Olets, Hastelloy Weldolet, Hastelloy Sockolet, Hastelloy Elbowlet, Hastelloy Thredolet, Hastelloy Nipolet, Hastelloy Latrolet, Hastelloy Sweepolet, Hastelloy Half Coupling

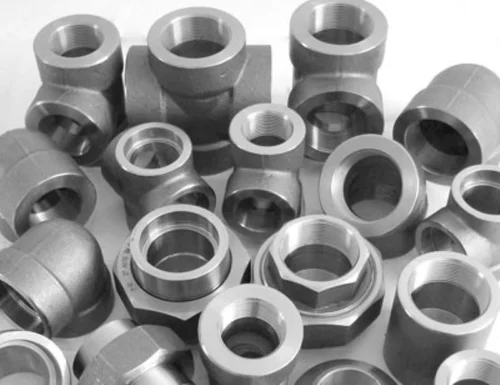

Inconel
Grades Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard ASTM / ASME SB 564
Types Elbow - 90 Deg. & 45 Deg, Tee - Equal & Reducing, Union, Cross, Coupling - Full & Half, Socket Reducing, CAP, Plug - Hex & Square, Nipples (Hex / Reducing), Bushing, Sockolet, Weldolet, Thredolet, Elbolet, Nipolet
Incoloy
Grades Incoloy 800, Incoloy 825, Incoloy 925, Incoloy A-286, Incoloy DS
Types Union, Coupling, Full Coupling, Cross, Forged Elbow, Hex Nipple, Plug, Bushing, Boss, Insert, Adapter, Socket, Forged Tee, Olets, Weldolet, Sockolet, Elbowlet, Thredolet, Nipolet, Latrolet, Sweepolet, Half Coupling
Monel
Grades Monel 400, Monel K500
Types Elbows, Equal/Unequal Tees, Concentric/Eccentric Reducers, Full/Half Couplings, Reducing Couplings, Caps, Cross, Unions, Hex/Reducing/Flash Bushings, Plugs, Nipples, Swage Nipples, Reducer Inserts, Boss, Laterals, Street Elbows, Outlets/Branch Connections (Weldolets, Thredolets, Sockolets, Flexolets, Latrolets, Elbolets, Sweepolets, Insert Weldolets, Nippolets, Brazolets, Coupolets)

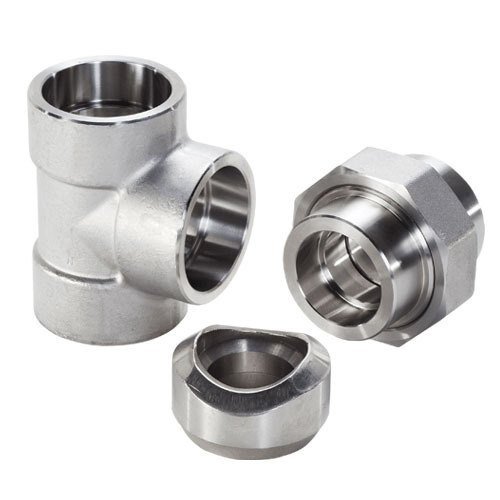

Titanium
Grades Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23
Size 1/2” NB to 4” NB
Types Titanium Union, Titanium Coupling, Titanium Full Coupling, Titanium Cross, Titanium Forged Elbow, Titanium Hex Nipple, Titanium Plug, Titanium Bushing, Titanium Boss, Titanium Insert, Titanium Adapter, Titanium Socket, Titanium Forged Tee, Titanium Olets, Titanium Weldolet, Titanium Sockolet, Titanium Elbowlet, Titanium Thredolet, Titanium Nipolet, Titanium Latrolet, Titanium Sweepolet, Titanium Half Coupling

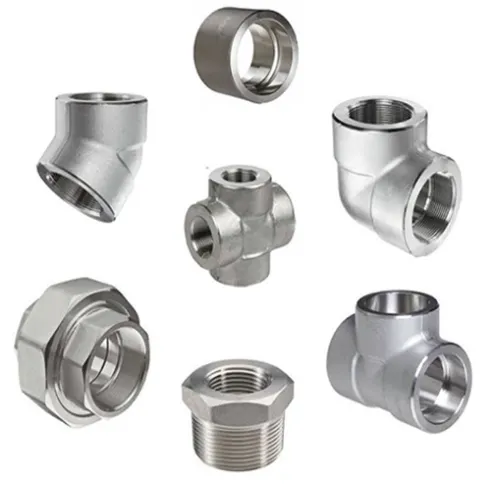

Tantalum
Specifications ASTM B363, ASTM B16.9 Titanium pipe fittings
Material Titanium Gr1, Gr2, Gr5, etc.
Product Elbow, Tee, Stud End, Reducer
Elbow Type 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow
Tee Type Straight Tee, Reducing Outlet Tee

Specification of Stainless Steel Forged Fittings

Specification ASTM A182 / ASME SA182
Dimension Standard ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size 1/8" NB to 4" NB
Type Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure Threaded End - 2000 / 3000 / 6000 LBS. Socket-weld End - 3000 / 6000 / 9000 LBS

Forged Screwed Fittings (ANSI B16.11 - 3000/6000 LBS)

Fitting Type Size Range (inches) Pressure Rating Thread Type Material Options Standards
Elbow (90°) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Elbow (45°) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Tee (Equal) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Tee (Reducing) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Coupling (Full) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Coupling (Half) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Union (Threaded) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Cap 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Plug 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Bushing 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Cross (Equal) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1
Cross (Reducing) 1/8” to 4” 3000 LBS / 6000 LBS NPT (National Pipe Thread) Carbon Steel, Stainless Steel, Alloy Steel ANSI B16.11, ASA B 2.1

Threaded Fittings Weight Chart

Fitting Type Size Range (inches) Pressure Rating Weight (Kg) Material Standards
Elbow (90°) 1/8” 3000 LBS 0.2 Carbon Steel, Stainless Steel ANSI B16.11
Elbow (90°) 1/4” 3000 LBS 0.35 Carbon Steel, Stainless Steel ANSI B16.11
Elbow (90°) 1/2” 3000 LBS 0.6 Carbon Steel, Stainless Steel ANSI B16.11
Elbow (90°) 1” 3000 LBS 1.2 Carbon Steel, Stainless Steel ANSI B16.11
Tee (Equal) 1/8” 3000 LBS 0.4 Carbon Steel, Stainless Steel ANSI B16.11
Tee (Equal) 1/4” 3000 LBS 0.8 Carbon Steel, Stainless Steel ANSI B16.11
Tee (Equal) 1” 3000 LBS 2.4 Carbon Steel, Stainless Steel ANSI B16.11
Coupling (Full) 1/8” 3000 LBS 0.25 Carbon Steel, Stainless Steel ANSI B16.11
Coupling (Full) 1/2” 3000 LBS 0.5 Carbon Steel, Stainless Steel ANSI B16.11
Union (Threaded) 1/8” 3000 LBS 0.3 Carbon Steel, Stainless Steel ANSI B16.11
Union (Threaded) 1/4” 3000 LBS 0.6 Carbon Steel, Stainless Steel ANSI B16.11

Types of Forged Fittings

They usually come in two different forms – Forged Threaded Fittings and Forged Socket Weld Fittings. And further, these are sub-categorised divided into different types such as Elbow, Tee, Union, Cross, Coupling, Cap, Bush, and Plug.

Image 1

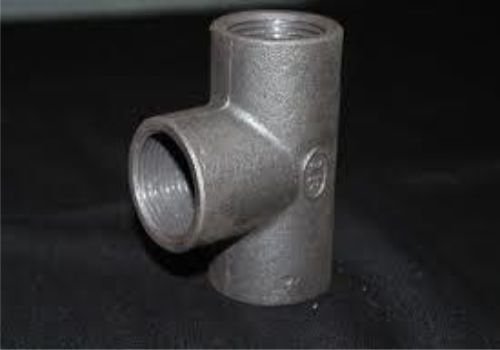

Fordge TEE

Image 2

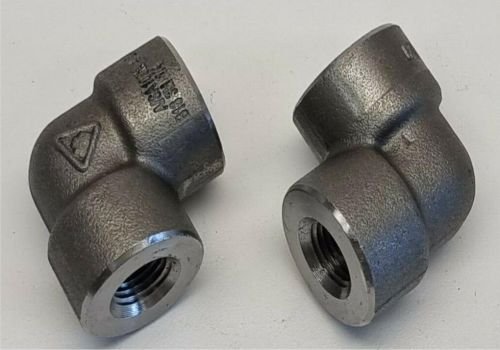

Fordge Elbow

Image 3

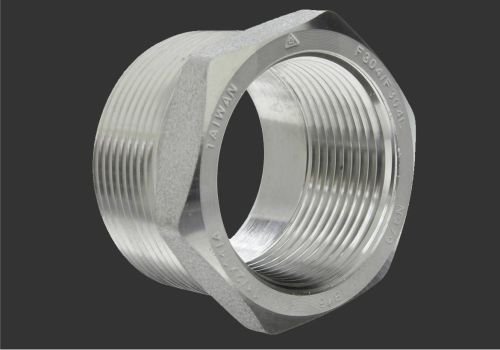

Bushing Fordge

Image 3

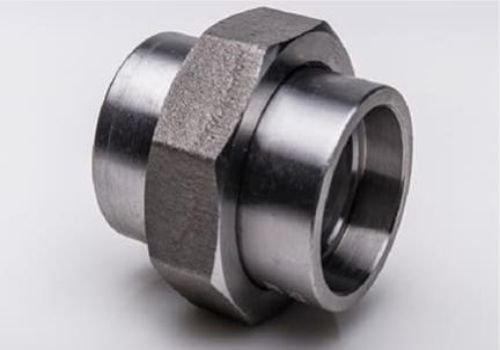

Fordge Union

Image 3

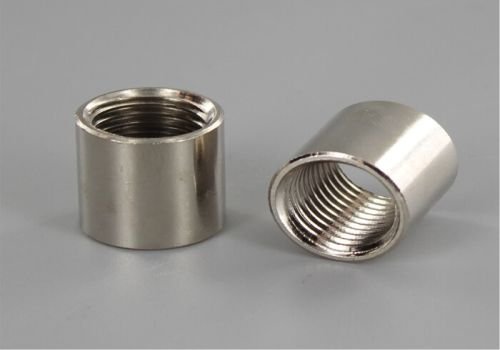

Fordge Coupling

Image 3

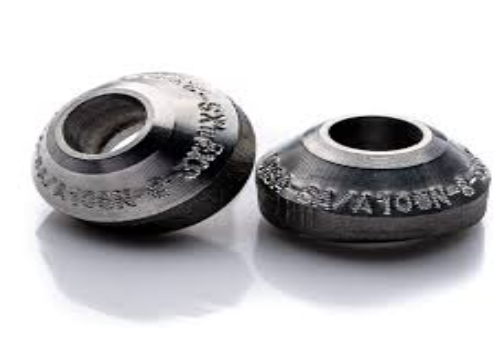

Weldolet

Image 3

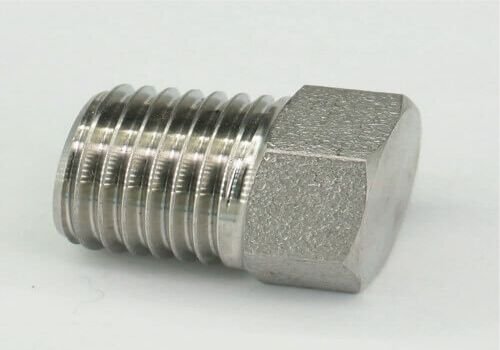

Fordge Plug

Image 3

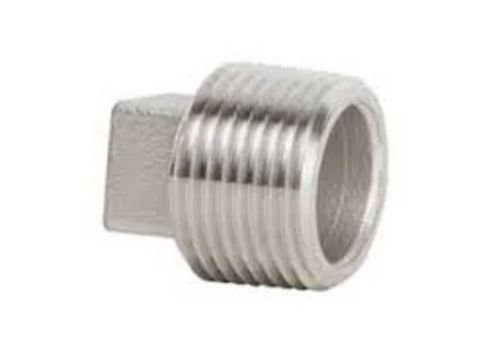

Square Plug Fix

Image 3

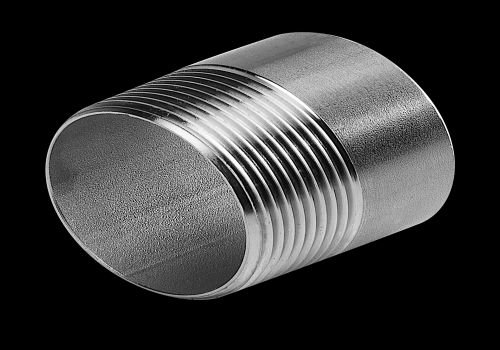

Single Nipple
