Standard | Product Form |
---|---|
ASTM B265 (Gr2) | Sheet, Strip, and Plate |
ASTM B338 | Tube, Seamless and Welded |
ASTM B348 (Gr2) | Bars and Billets |
ASTM B861 | Seamless Pipe |
ASTM B863 | Wire |
ASTM F67 (Gr2) | Unalloyed Titanium for Surgical Implants |

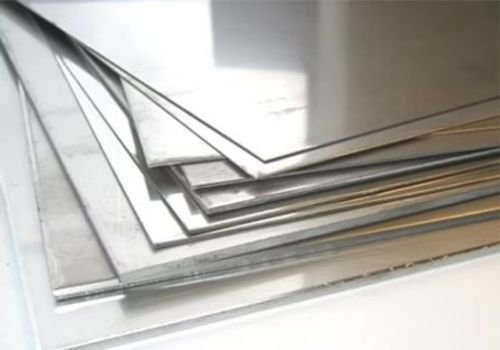

Stainless Steel Sheets and Plates Specifications | |
---|---|
Grades Available | 304, 304L, 316, 316L, 321, 310, 310S, 904L, 17-4PH, and more as per customer requirements |
Thickness Range | From 0.3 mm to 100 mm (custom thicknesses available) |
Width | Up to 2500 mm |
Length | Up to 6000 mm, or custom-cut based on requirements |
Finish Options |
|
Mechanical Properties |
|
Corrosion Resistance | Excellent resistance to rust, stains, and corrosion, ideal for harsh environments |
Standards & Certifications |
|
Applications |
|
Thickness in. (mm) | Width 36" (914.4mm) | Width 48" (1,219mm) |
---|---|---|
0.017–0.030 (0.43–0.76) | 0.0015 (0.038) | 0.002 (0.051) |
0.031–0.041 (0.79–1.04) | 0.002 (0.051) | 0.003 (0.076) |
0.042–0.059 (1.1–1.5) | 0.003 (0.076) | 0.004 (0.10) |
0.060–0.073 (1.5–1.9) | 0.003 (0.076) | 0.0045 (0.11) |
0.074–0.084 (1.9–2.1) | 0.004 (0.10) | 0.0055 (0.14) |
0.085–0.099 (2.2–2.5) | 0.004 (0.10) | 0.006 (0.15) |
0.100–0.115 (2.5–2.9) | 0.005 (0.13) | 0.007 (0.18) |
0.116–0.131 (2.9–3.3) | 0.005 (0.13) | 0.0075 (0.19) |
0.132–0.146 (3.4–3.7) | 0.006 (0.15) | 0.009 (0.23) |
0.147–0.187 (3.7–4.7) | 0.007 (0.18) | 0.0105 (0.20) |
Thickness in mm | Size in mm (2000 x 1000) | Size in mm (2500 x 1250) | Size in mm (3000 x 1500) | Weight kg/m² |
---|---|---|---|---|
0.18 | 2.88 | - | - | 1.44 |
0.20 | 3.20 | - | - | 1.60 |
0.22 | 3.52 | - | - | 1.76 |
0.24 | 3.84 | - | - | 1.92 |
0.27 | 4.32 | - | - | 2.16 |
0.28 | 4.48 | - | - | 2.24 |
0.32 | 5.12 | - | - | 2.56 |
0.38 | 6.08 | - | - | 3.04 |
0.44 | 7.04 | 11.00 | - | 3.52 |
0.50 | 8.00 | 12.50 | - | 4.00 |
0.56 | 8.96 | 14.00 | - | 4.48 |
0.63 | 10.08 | 15.75 | - | 5.04 |
0.75 | 12.00 | 18.75 | - | 6.00 |
0.88 | 14.08 | 22.00 | - | 7.04 |
1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
1.38 | 22.03 | 34.50 | 50.00 | 12.00 |
1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
