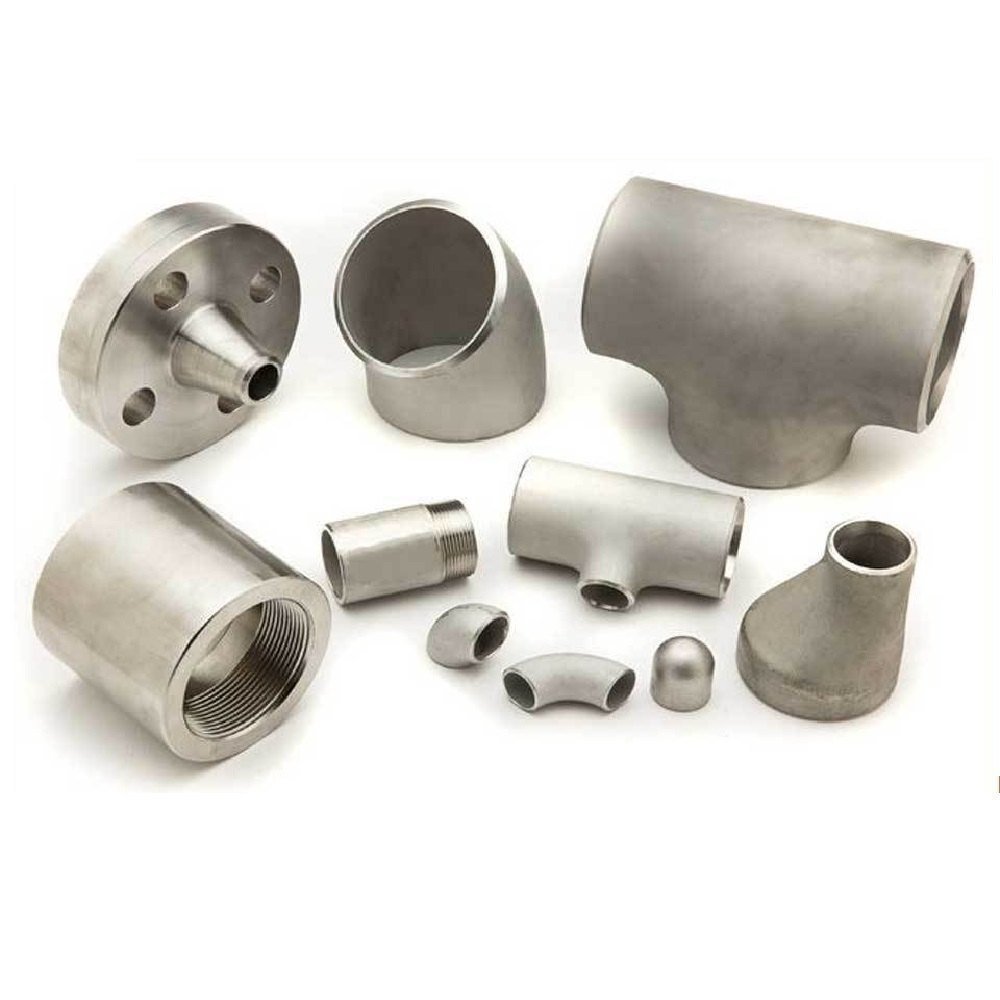

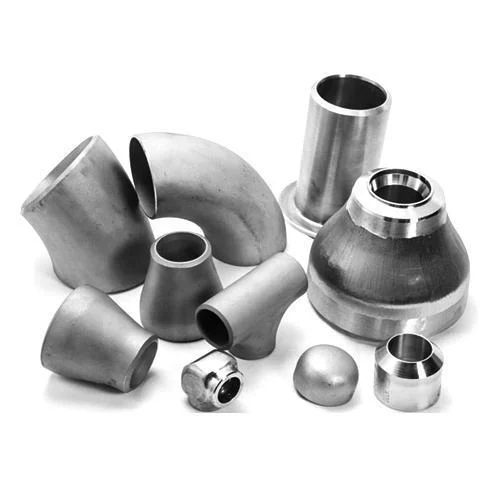

Titanium Pipe Fittings
| Specification | ASTM B 363 / ASME SB 363 |
|---|---|
| Dimensions | ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43 |
| Size | ½” NB to 24” NB in Sch 10s, 40s, 80s, 160s, XXS |
| Schedule | SCH 10, SCH 20, SCH 30, SCH 40 |
| Types | Seamless, ERW, Welded, Fabricated |
| Grades | Titanium Gr 1, Titanium Gr 2, Titanium Gr 5, Titanium Gr 7 |

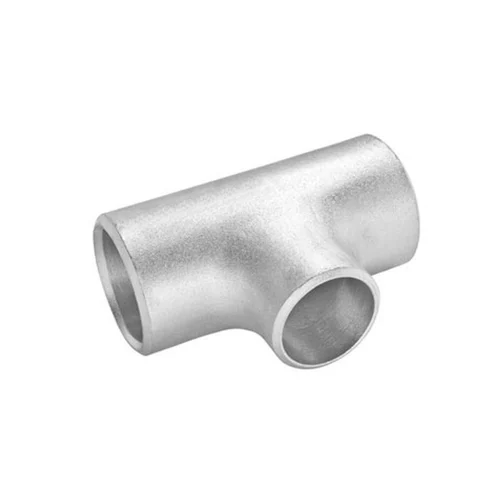

Ti Gr 2 Pipe Fittings Specification Format
| Specifications | ASTM B363 / ASME SB363 |
|---|---|
| Size Range |
|
| Other Grades | Grade 1, Grade 2, Grade 5, Grade 7 |
| Dimension Standards | ASME / ANSI B16.9, ASME B16.28, MSS-SP-43, BS1560, BS4504, BS10 |
| Bending Radius | Radius = 1D, 2D, 3D, 5D, 6D, 8D, 10D |
| Thickness of Fitting | SCH10, SCH20, SCH30, STD SCH40, SCH60, SCH80, SCH100, SCH120, SCH140, SCH160, XS, XXS (Available with NACE MR 01-75) |
| Size Ranges | ½″ NB to 24″ NB in Schedule 10s, 40s, 80s, 160s, XXS |
| Process of Manufacturing | Push, Press, Cast, Forge |
| Types | Welded, Seamless, Fabricated |
Chemical Formula of Titanium Grade 5 Fittings
| Grade | Fe | C | N | Ti | Al | O | H | V |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 2 | 0.3 max | 0.1 max | 0.03 max | 99.2 min | – | 0.25 max | 0.015 max | – |
| Titanium Gr 5 | 0.40 max | 0.10 max | 0.05 max | 90 min | 5.5–6.75 | 0.20 max | 0.015 max | 3.5–4.5 |
